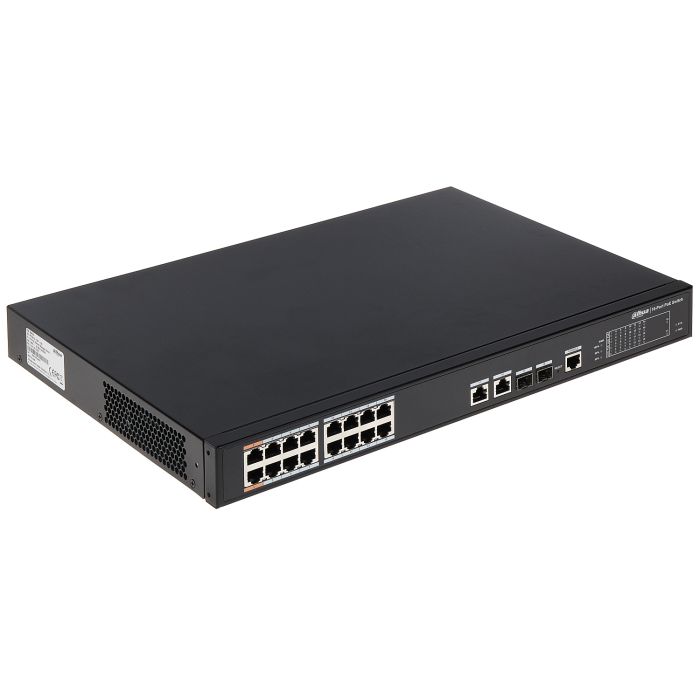

Dahua - DH-CS4218-16ET-135

Hardware

Included Power Adapter

Yes

PoE

Yes

Ethernet Port

16

Ethernet Port Speed

10/100 Mbps

Optical Port Speed

1000 Mbps

Ethernet Port Uplink Speed

10/100/1000 Mbps

Optical Port Uplink Speed

1 Gbps

Description of Function Slots

Port 1-16: 16 × RJ-45 10/100 Mbps (PoE); Port 17-18: 2 × RJ-45 10/100/1000 Mbps (combo); Port 17-18: 2 × SFP 1000 Mbps (combo)

Reset Button

1

Power Supply

Built-in power supply: 100-240 VDC, 47-63 Hz, max 3 A

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

5%–95% (RH), non-condensing

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Storage Humidity

5%–95% (RH), non-condensing

Power Consumption

Idling: ≤6 W ; Full load: 154 W

Performance

Layer

Layer 2

Management Type

Yes

Smart Managed Switch

Yes

MTBF

87.10 years

Switching Capacity

7.2 Gbps

Packet Forwarding Rate

5.36 Mpps

Packet Buffer Size

4 Mbit

Jumbo Frame

15K Byte

MAC Table Size

8K

VLAN Number

32

Communication Standard

IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab; IEEE802.3z

Feature

PoE Protocol

IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
